Clamp Arm

- Removable

- Reversible


UD Models: Remove the Key Ring.

UE, UF, UG, UM Models: Press the Spring Stop

UP Models: Remove the Screw Stop

The Strong, economical 4-IN-1 Utility Clamps adapt to serve four different applications.

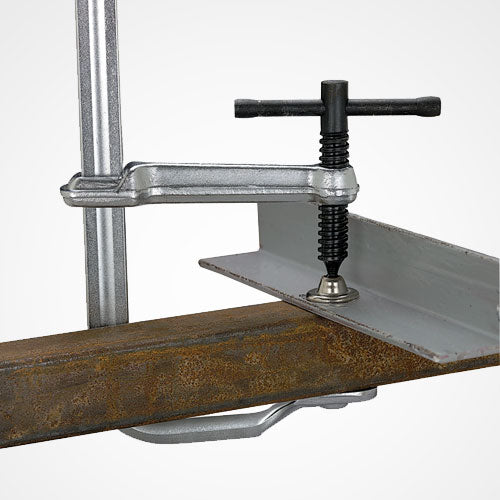

1. Standard

Sliding Arm Clamps are 10x faster than a C-Clamp!

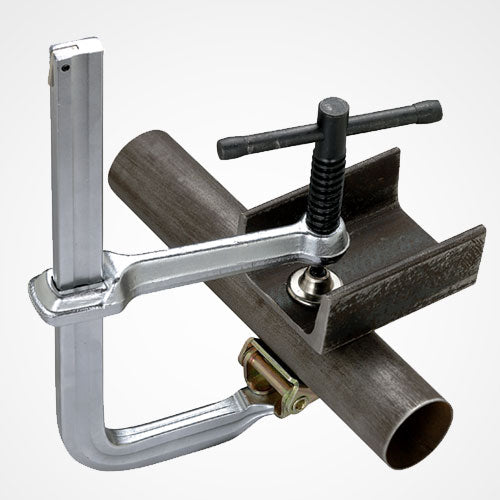

2. Pipe

Add the exclusive V-Pad to create a Pipe Clamp!

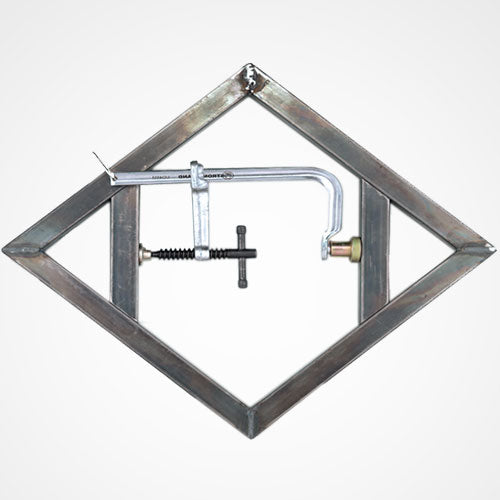

3. Spreader

Reverse the clamp arm and create a Spreader Clamp.

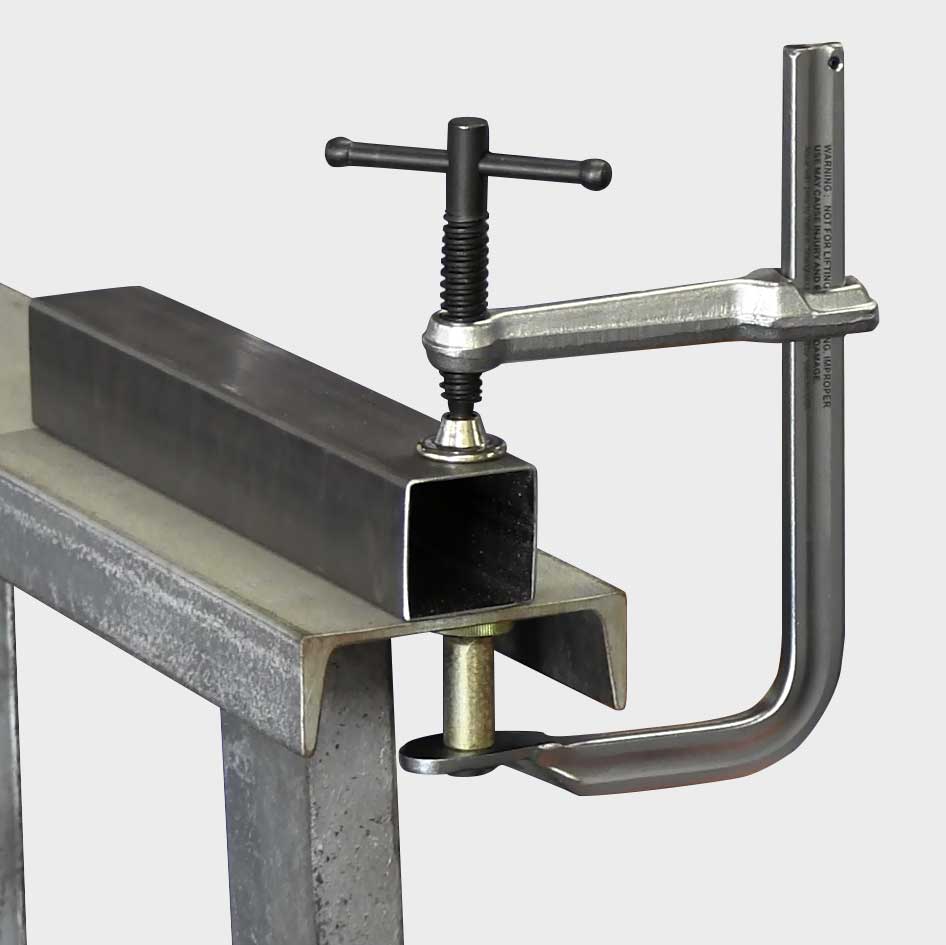

4. Step-Over

Add the Extender Block to create a Step-Over Clamp.

Self-aligning, Replaceable Heavy Duty Pad

For Heavy Duty and some Medium Duty clamps.


Tapped Hole - (D)

For attaching accessories such as the V-Pad or Extender Block.

Part No. Capacity - A (in) Throat Depth - B (in) Clamping Pressure (lb) Pads Rail Size - C (in) Tapped Hole - D Weight (lb)

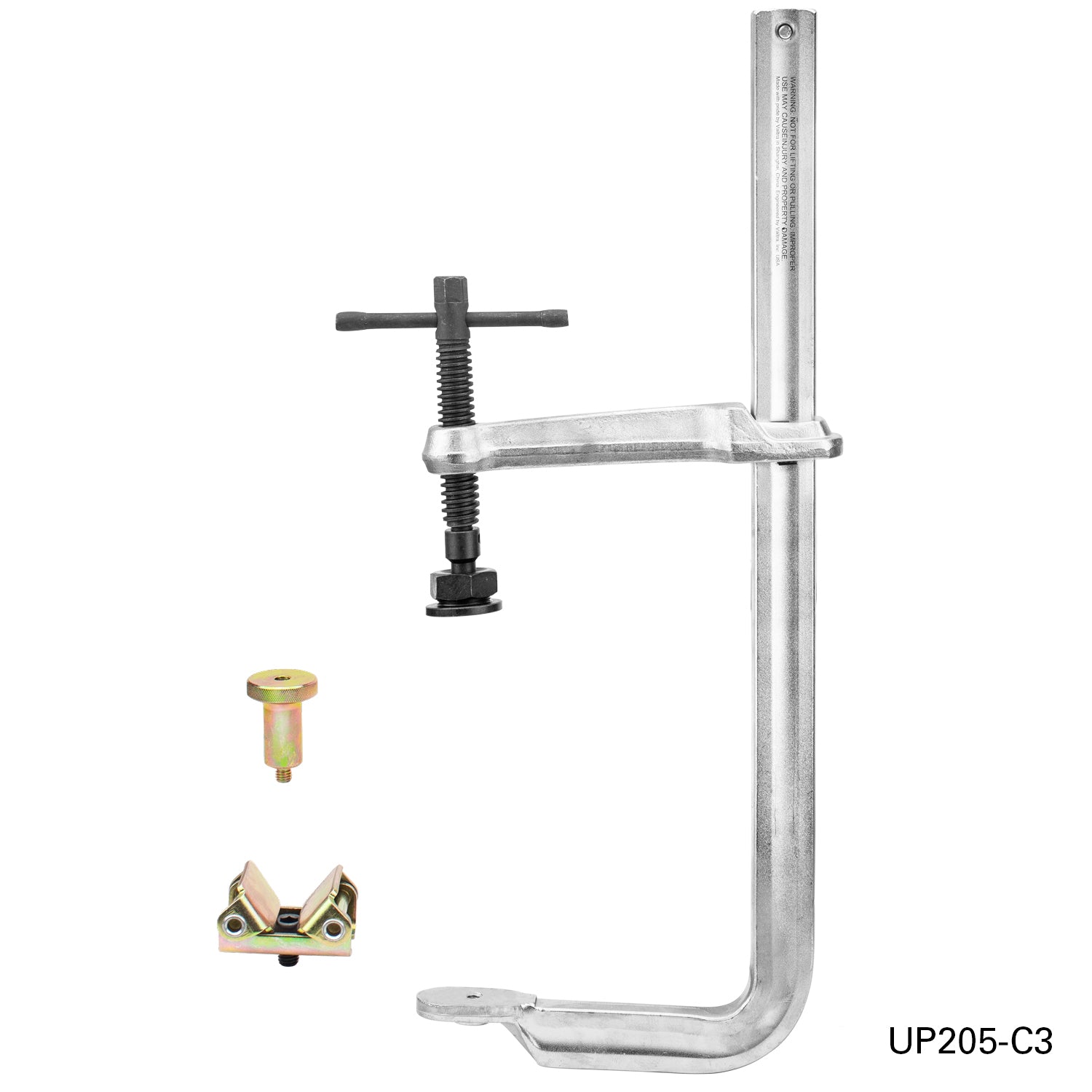

UP205-C3 20-1/2 7 *Deep Throat 4,800 Heavy Duty 1-21/32 x 3/4 3/8-16 16.1

Get Clamp Accessories & Replacements

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

Manual

CAD
