How to Use

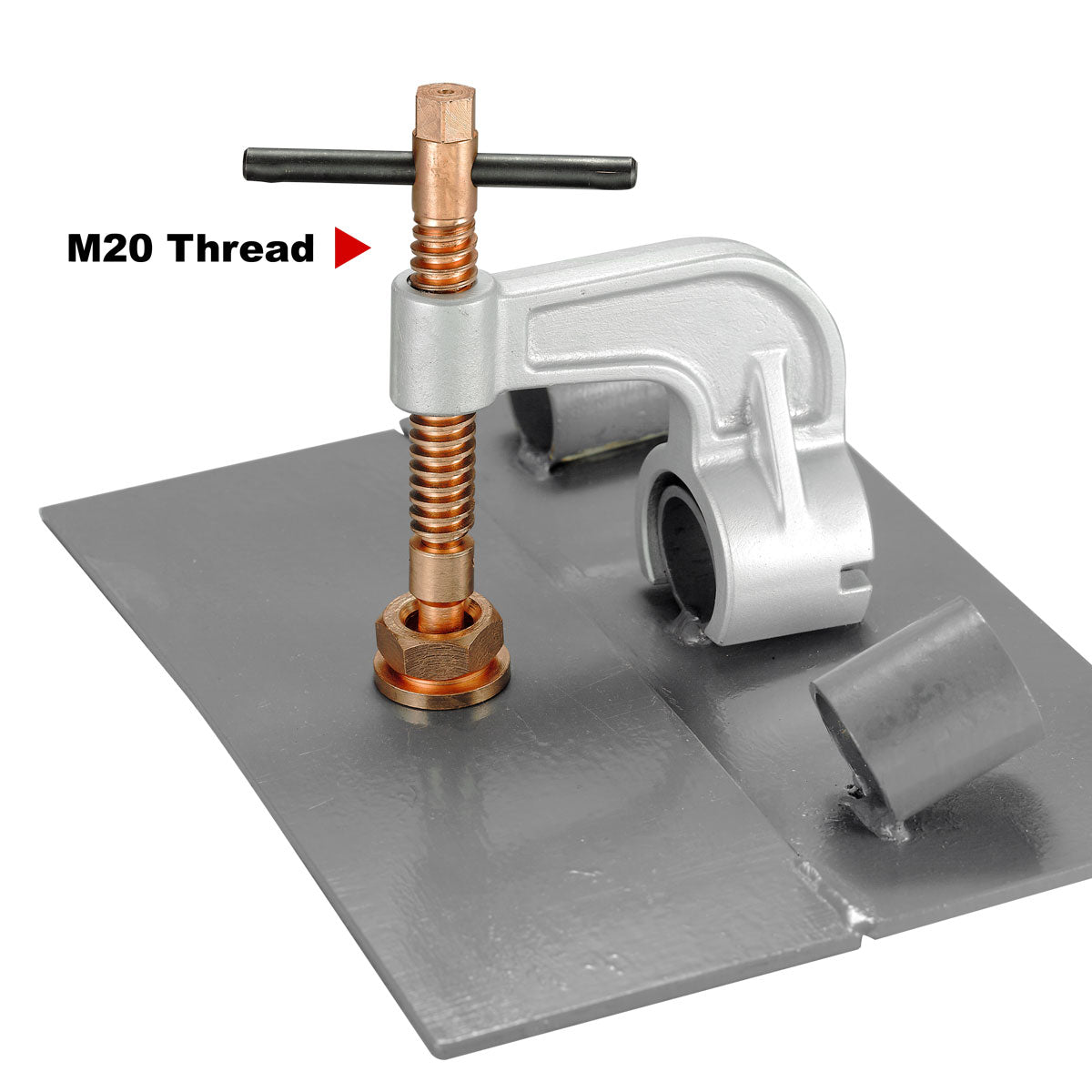

Tack weld the front side of 1-7/8” pipe coupon to the lower of the two surfaces.

Slide Half Clamp onto the cut pipe, turn the handle until the misaligned materials align.

Use the rear slot on the Half Clamp to easily break off the coupon.

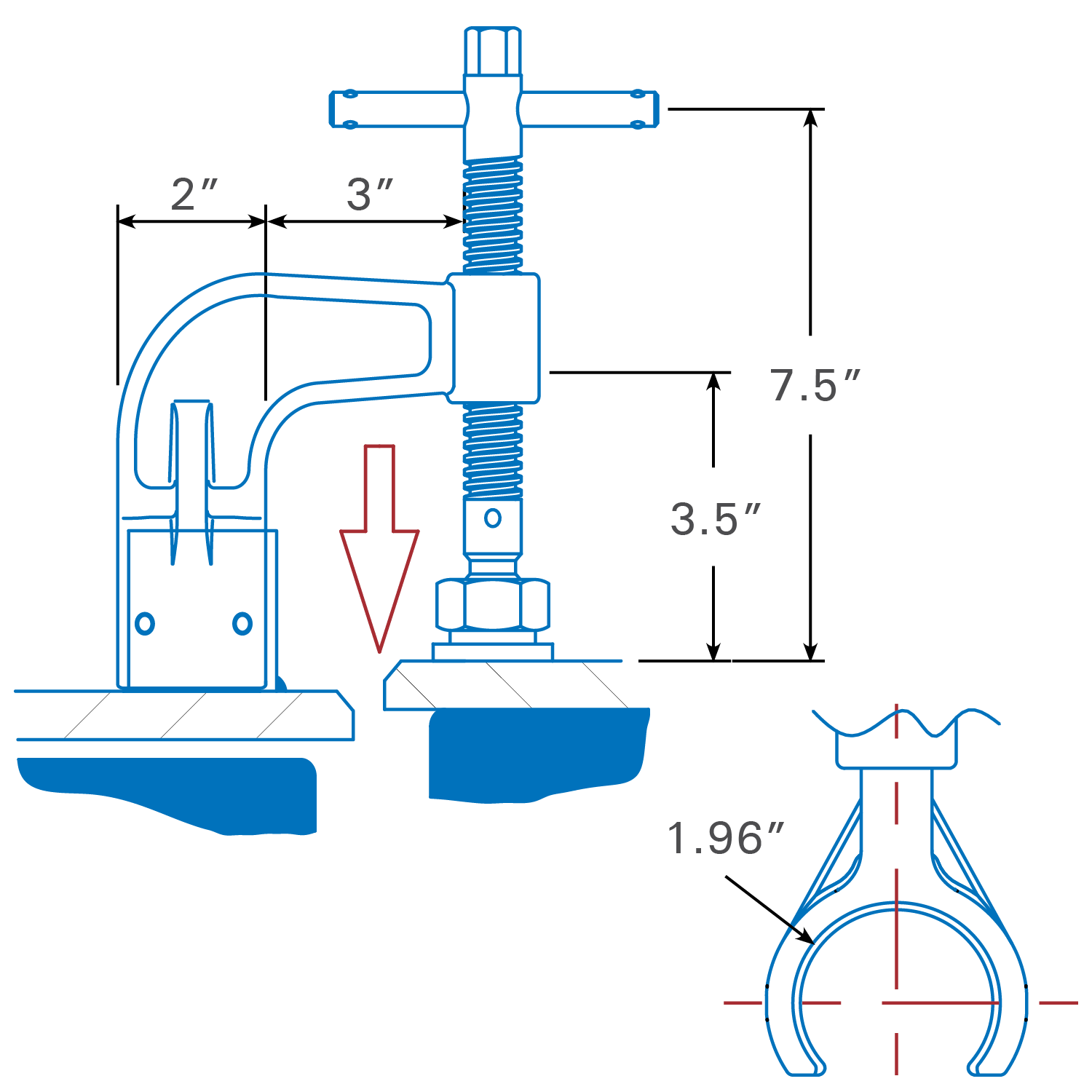

Part No. MAX. Torque Weight (lb)
VHC15 13.7 N-M 4.9
